Membuat Aplikasi Story dengan Arsitektur First-Offline

Step 1: Setup Project dan Memahami Dependencies

1.1 Membuat Project Baru

1. Buka Android Studio
2. Pilih "New Project" > "Empty Activity"

3. Isi nama aplikasi: "StoryApp"
4. Pilih bahasa: Kotlin
5. Minimum SDK: API 24

1.2 Memahami Dependencies

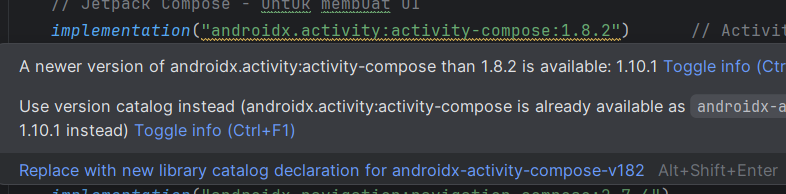

Buka build.gradle.kts (Module: app) dan pastikan dependencies berikut sudah ada:

// Jetpack Compose - untuk membuat UI
implementation("androidx.activity:activity-compose:1.8.2")      // Activity Compose
implementation("androidx.compose.ui:ui:1.6.0")                 // Compose UI
implementation("androidx.compose.ui:ui-graphics:1.6.0")        // Graphics
implementation("androidx.compose.material3:material3:1.2.0")   // Material Design 3

// Navigation - untuk perpindahan antar halaman
implementation("androidx.navigation:navigation-compose:2.7.6")

// ViewModel - untuk state management
implementation("androidx.lifecycle:lifecycle-viewmodel-compose:2.7.0")

// Room - untuk database lokal
implementation("androidx.room:room-runtime:2.6.1")
ksp("androidx.room:room-compiler:2.6.1")
implementation("androidx.room:room-ktx:2.6.1")

// Retrofit - untuk network calls
implementation("com.squareup.retrofit2:retrofit:2.9.0")        // Library utama
implementation("com.squareup.retrofit2:converter-gson:2.9.0")  // Konverter JSON
implementation("com.squareup.okhttp3:logging-interceptor:4.11.0") // Logging

// DataStore - untuk penyimpanan kecil seperti token
implementation("androidx.datastore:datastore-preferences:1.0.0")

// WorkManager - untuk background tasks
implementation("androidx.work:work-runtime-ktx:2.9.0")

// Hilt - untuk dependency injection
implementation("com.google.dagger:hilt-android:2.48")
kapt("com.google.dagger:hilt-android-compiler:2.48")
implementation("androidx.hilt:hilt-navigation-compose:1.1.0")

Step 2: Menyiapkan Struktur Project

Buat package berikut:

1. data/remote - API service, response models
2. data/local - Room database, entities, DAOs
3. data/repository - Repository pattern implementation
4. di - Dependency injection modules
5. ui/screen - Compose screens
6. ui/navigation - Navigation setup
7. ui/theme - Theme configuration
8. viewmodel - ViewModels
9. data/helper - Utility classes

Step 3: Membuat Helper Classes

3.1 Result Helper

Buat file Result.kt di package data/helper:

sealed class Result<out T> {
    data class Success<out T>(val data: T) : Result<T>()
    data class Error(val message: String) : Result<Nothing>()
    object Loading : Result<Nothing>()
}

Step 4: Setup Data Layer - Remote

4.1 API Models

Buat file LoginRequest.kt di data/remote/model:

data class LoginRequest(
    val email: String,
    val password: String
)

Buat file LoginResponse.kt:

data class LoginResponse(
    val error: Boolean,
    val message: String,
    val loginResult: LoginResult
)

data class LoginResult(
    val userId: String,
    val name: String,
    val token: String
)

4.2 API Service

Buat file ApiService.kt di data/remote:

interface ApiService {
    @POST("login")
    suspend fun login(@Body loginRequest: LoginRequest): LoginResponse

    // Tambahkan endpoint lain di sini
}

Step 5: Setup Data Layer - Local

5.1 User Entity

Buat file UserEntity.kt di data/local/entity:

@Entity(tableName = "users")
data class UserEntity(
    @PrimaryKey
    val userId: String,
    val name: String,
    val token: String
)

5.2 User DAO

Buat file UserDao.kt di data/local/dao:

@Dao
interface UserDao {
    @Insert(onConflict = OnConflictStrategy.REPLACE)
    suspend fun insertUser(user: UserEntity)

    @Query("SELECT * FROM users WHERE userId = :userId")
    fun getUserById(userId: String): Flow<UserEntity?>

    @Query("DELETE FROM users")
    suspend fun deleteAll()
}

5.3 App Database

Buat file StoryDatabase.kt di data/local:

@Database(entities = [UserEntity::class], version = 1, exportSchema = false)
abstract class StoryDatabase : RoomDatabase() {
    abstract fun userDao(): UserDao
}

Step 6: Setup Dependency Injection (Hilt)

6.1 Module untuk Network

Buat file NetworkModule.kt di di:

@Module
@InstallIn(SingletonComponent::class)
object NetworkModule {

    @Provides
    @Singleton
    fun provideOkHttpClient(): OkHttpClient {
        val loggingInterceptor = HttpLoggingInterceptor().apply {
            level = HttpLoggingInterceptor.Level.BODY
        }

        return OkHttpClient.Builder()
            .addInterceptor(loggingInterceptor)
            .build()
    }

    @Provides
    @Singleton
    fun provideRetrofit(okHttpClient: OkHttpClient): Retrofit {
        return Retrofit.Builder()
            .baseUrl(BuildConfig.API_URL) // Menggunakan URL dari BuildConfig
            .addConverterFactory(GsonConverterFactory.create())
            .client(okHttpClient)
            .build()
    }

    @Provides
    @Singleton
    fun provideApiService(retrofit: Retrofit): ApiService {
        return retrofit.create(ApiService::class.java)
    }
}

6.1.1 Konfigurasi Environment dengan .env File

Untuk mengelola URL API dan konfigurasi sensitif secara aman, gunakan file .env:

1. Buat file .env di root project:

# URL untuk API
API_URL_DEBUG=https://api-dev.example.com/v1/
API_URL_RELEASE=https://api.example.com/v1/

# Konfigurasi lain yang diperlukan
API_KEY=YOUR_API_KEY

Untuk menggunakan file .env, Anda perlu menambahkan library tambahan di build.gradle.kts (project):

buildscript {
    dependencies {
        // ...existing code...
        classpath("io.github.cdimascio:dotenv-kotlin:6.4.1")
    }
}

Lalu, baca environment variables di build.gradle.kts (module: app):

// Impor dotenv
import io.github.cdimascio.dotenv.dotenv

// Baca .env file
val dotenv = dotenv {
    directory = rootProject.projectDir.absolutePath
    ignoreIfMissing = true
}

android {
    // ...existing code...

    buildTypes {
        debug {
            buildConfigField("String", "API_URL", "\"${dotenv["API_URL_DEBUG"] ?: "https://api-dev.example.com/v1/"}\"")
        }
        release {
            buildConfigField("String", "API_URL", "\"${dotenv["API_URL_RELEASE"] ?: "https://api.example.com/v1/"}\"")
            // Konfigurasi release lainnya
            isMinifyEnabled = true
            proguardFiles(getDefaultProguardFile("proguard-android-optimize.txt"), "proguard-rules.pro")
        }
    }
}

6.2 Module untuk Database

Buat file DatabaseModule.kt di di:

@Module
@InstallIn(SingletonComponent::class)
object DatabaseModule {

    @Provides
    @Singleton
    fun provideDatabase(@ApplicationContext context: Context): StoryDatabase {
        return Room.databaseBuilder(
            context,
            StoryDatabase::class.java,
            "story_database"
        ).fallbackToDestructiveMigration().build()
    }

    @Provides
    fun provideUserDao(database: StoryDatabase): UserDao {
        return database.userDao()
    }
}

6.3 Application Class

Buat file StoryApplication.kt di package root:

@HiltAndroidApp
class StoryApplication : Application()

Step 7: Repository Implementation

Buat file AuthRepository.kt di data/repository:

@Singleton
class AuthRepository @Inject constructor(
    private val apiService: ApiService,
    private val userDao: UserDao
) {
    suspend fun login(email: String, password: String): Flow<Result<UserEntity>> = flow {
        emit(Result.Loading)
        try {
            val response = apiService.login(LoginRequest(email, password))
            if (response.error) {
                emit(Result.Error(response.message))
            } else {
                val user = UserEntity(
                    userId = response.loginResult.userId,
                    name = response.loginResult.name,
                    token = response.loginResult.token
                )
                userDao.insertUser(user)
                emit(Result.Success(user))
            }
        } catch (e: Exception) {
            emit(Result.Error(e.message ?: "Terjadi kesalahan"))
        }
    }
}

Step 8: ViewModel Setup

Buat AuthViewModel.kt di package viewmodel:

@HiltViewModel
class AuthViewModel @Inject constructor(
    private val authRepository: AuthRepository
) : ViewModel() {

    private val _loginState = MutableStateFlow<Result<UserEntity>?>(null)
    val loginState: StateFlow<Result<UserEntity>?> = _loginState

    fun login(email: String, password: String) {
        viewModelScope.launch {
            authRepository.login(email, password).collect { result ->
                _loginState.value = result
            }
        }
    }
}

Step 9: UI Screen Implementation

9.1 Buat LoginScreen.kt

Buat file LoginScreen.kt di package ui/screen:

@OptIn(ExperimentalMaterial3Api::class)
@Composable
fun LoginScreen(viewModel: AuthViewModel, onSuccess: () -> Unit) {
    var email by remember { mutableStateOf("") }
    var password by remember { mutableStateOf("") }
    var isEmailError by remember { mutableStateOf(false) }
    var isPasswordError by remember { mutableStateOf(false) }

    val loginState by viewModel.loginState.collectAsState()

    Column(
        modifier = Modifier
            .fillMaxSize()
            .padding(16.dp),
        horizontalAlignment = Alignment.CenterHorizontally,
        verticalArrangement = Arrangement.Center
    ) {
        Text(
            text = "Login",
            style = MaterialTheme.typography.headlineMedium
        )

        Spacer(modifier = Modifier.height(24.dp))

        OutlinedTextField(
            value = email,
            onValueChange = {
                email = it
                isEmailError = false
            },
            label = { Text("Email") },
            isError = isEmailError,
            modifier = Modifier.fillMaxWidth(),
            keyboardOptions = KeyboardOptions(keyboardType = KeyboardType.Email)
        )

        if (isEmailError) {
            Text(
                text = "Email tidak boleh kosong",
                color = MaterialTheme.colorScheme.error,
                style = MaterialTheme.typography.bodySmall,
                modifier = Modifier.align(Alignment.Start)
            )
        }

        Spacer(modifier = Modifier.height(16.dp))

        OutlinedTextField(
            value = password,
            onValueChange = {
                password = it
                isPasswordError = false
            },
            label = { Text("Password") },
            isError = isPasswordError,
            visualTransformation = PasswordVisualTransformation(),
            modifier = Modifier.fillMaxWidth(),
            keyboardOptions = KeyboardOptions(keyboardType = KeyboardType.Password)
        )

        if (isPasswordError) {
            Text(
                text = "Password tidak boleh kosong",
                color = MaterialTheme.colorScheme.error,
                style = MaterialTheme.typography.bodySmall,
                modifier = Modifier.align(Alignment.Start)
            )
        }

        Spacer(modifier = Modifier.height(24.dp))

        Button(
            onClick = {
                if (email.isEmpty()) {
                    isEmailError = true
                } else if (password.isEmpty()) {
                    isPasswordError = true
                } else {
                    viewModel.login(email, password)
                }
            },
            modifier = Modifier.fillMaxWidth()
        ) {
            Text("Login")
        }

        Spacer(modifier = Modifier.height(16.dp))

        when (val result = loginState) {
            is Result.Success -> {
                LaunchedEffect(result) {
                    onSuccess()
                }
            }
            is Result.Error -> {
                Text(
                    text = "Login gagal: ${result.message}",
                    color = MaterialTheme.colorScheme.error
                )
            }
            is Result.Loading -> {
                CircularProgressIndicator()
            }
            null -> {
                // Initial state, do nothing
            }
        }
    }
}

9.2 Buat StoryApp.kt untuk Navigation

Buat file StoryApp.kt di package ui/navigation:

@Composable
fun StoryApp() {
    val navController = rememberNavController()

    NavHost(navController = navController, startDestination = "login") {
        composable("login") {
            val viewModel: AuthViewModel = hiltViewModel()
            LoginScreen(
                viewModel = viewModel,
                onSuccess = {
                    navController.navigate("home") {
                        popUpTo("login") { inclusive = true }
                    }
                }
            )
        }
        composable("home") {
            // Tambahkan HomeScreen di sini nanti
        }
    }
}

9.3 Update MainActivity

@AndroidEntryPoint
class MainActivity : ComponentActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        enableEdgeToEdge()
        setContent {
            StoryAppTheme {
                StoryApp()
            }
        }
    }
}

Step 10: Update AndroidManifest.xml

Tambahkan izin internet dan konfigurasi aplikasi di AndroidManifest.xml:

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android">

    <!-- Tambahkan permission internet -->
    <uses-permission android:name="android.permission.INTERNET" />

    <application
        android:name=".StoryApplication"
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/Theme.StoryApp">
        <activity
            android:name=".MainActivity"
            android:exported="true"
            android:theme="@style/Theme.StoryApp">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />
                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>
</manifest>

Step 11: Testing

1. Build dan jalankan aplikasi
2. Test login dengan:
   • Email: email@example.com
   • Password: password123
3. Verifikasi bahwa aplikasi menampilkan loading state ketika menunggu respons server
4. Cek handling error jika server mengembalikan error
5. Verifikasi navigasi ke halaman home ketika login berhasil

Troubleshooting

1. Jika terjadi error dengan Hilt, pastikan:
   • Annotation processor sudah aktif (kapt enabled)
   • Semua class yang menggunakan @Inject memiliki constructor public
   • MainActivity memiliki @AndroidEntryPoint
2. Jika terjadi error jaringan:
   • Periksa URL di NetworkModule
   • Pastikan device/emulator terhubung ke internet
   • Verifikasi format request/response sesuai dengan API
3. Jika Room error:
   • Pastikan semua entity memiliki @PrimaryKey
   • Verifikasi versi database dan migrations

Dengan mengikuti langkah-langkah di atas, Anda akan memiliki aplikasi Story dengan fitur login yang menggunakan Retrofit untuk API calls dan Room untuk penyimpanan lokal, mengikuti arsitektur first-offline.
